22: Brain Data viewer and Export Brain Data




Use for to see Brain Data dictionary format files and for save this files.

Not good for long time data.


22 B: Select Tools / Export Brain Data...

Use for only save Export Brain Data. Can not see actual data iinside this window.

Good for long time data export and easy to open by application like Excel.

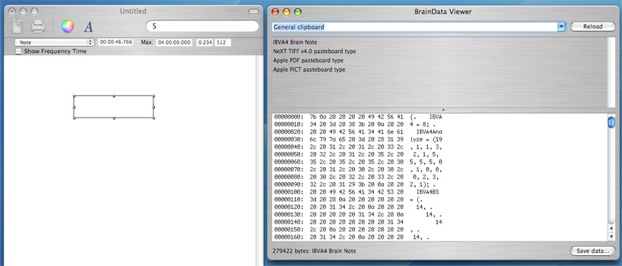

22 A: Select Tools / Brain Data Viewer and Export


22 A.1: select IBVA4 dictionary with "Preference/PreSet"

In the "Preference/PreSet" window, select IBVA data dictionary in the "Save Preference Setup" information which you like to see or export.

Then Open "Tools/Brain Data viewer & Export" window.

Click "IBVA Brain Note" Line to show data.


22 A.2: recommend to use this function less than 10 min. long data.

Data will show start time Zero to current time in this window.

It's too big to show long time recording data.

About 10 min is 1 MB size text file is ok to see this way.

You can set 'Start point" to change time X, then time X to current time will show in this window.

Need to set Time and Data dictionary this before open this window.

Or need to close window then open again for new data setup.

* In case select Brain Data CH 1, 2, 3, 4, text data size is very big. Take time to show in the Brain Date Viewer window.

Click "Save data", then see that data is more easy way. This export file can open by any Text editor application.

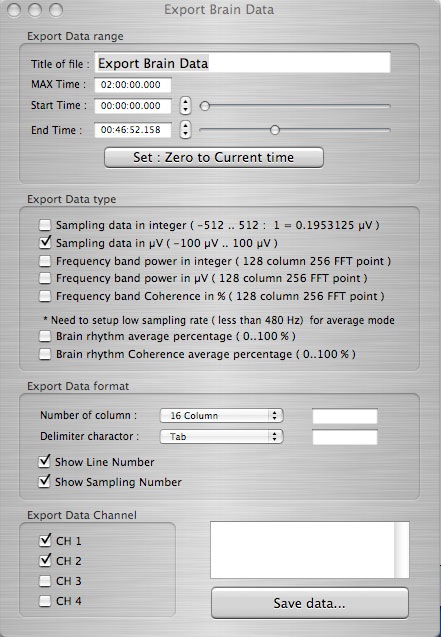

22 B: Select Tools / Export Brain Data...


22 B.1: use for only save Export Brain Data. can not see actual data in this window.


22 B.2: Export Data range.

Set Title, Start Time and End Time to Export.

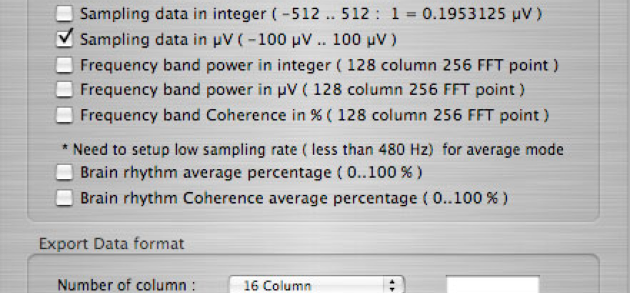

22 B.3: Export Data type.

Select Export Data type.


Header file example:


Title of the Export Brain Data:            Export Brain Data


Max buffer size:             08:00:00.000

Start Time in buffer:             00:00:00.000

End Time in buffer:             04:06:23.983


IBVA4 and current file information:

Start Date Time:            Sat 06/01/2007 12:25:12 PM

Current Date Time:            Sat 06/01/2007 12:28:17 PM

Time since start:             04:06:38.866

Name:

IBVA4 version:            4.3.8

Bluetooth:

Sampling frequency in Hz:            120

Cutoff frequency in Hz:            40

Total channel number:            4

Info Text:

Comment 1:

Comment 2:


IBVA4 and open file information:

Data Time Open file:

Open file data Time length:

Name Open:

IBVA4 version Open:

USB serial:

Sampling frequency in Hz:            120

Cutoff frequency in Hz:            40

Total channel number Open:

Info Open Text:

Comment 1 Open Text:

Comment 2 Open Text:



Raw Data ASCII File Output:

01774078  Sampling

00014783  Seconds

..........................................................................................................................................................................................................................



Sampling Raw data in integer example:

...........................................

120 sampling par second = 0.00833333 sec/sampling

-512 .. 0 .. 512 = -100.000000 .. 0.000000 .. 100.000000 micro volt p-p. 0.1953125 micro volt p-p is one step AD:

CH 1 ON

CH 2 ON

CH 3 ON

CH 4 ON

---------------------------------------------



Lines            Sampling      0000    0001    0002    0003    0004    0005    0006    0007    0008    0009    0010    0011    0012    0013    0014    0015    Number


Left CH1

00000000    00000000    0286    -071    -172    0027    -051    0008    0009    -007    0006    0029    -021    0013    -013    -015    0013    0057

00000001    00000016    -013    -013    -005    0010    -028    -006    -035    -038    -034    0009    -021    0024    0020    -006    -044    0001

00000002    00000032    -002    0011    -026    0020    0025    0009    -036    0002    0002    0004    -039    0006    -007    -015    -035    0025

...

..........................................................................................................................................................................................................................



Sampling Raw data in µV example:


..........................................................................................................................................................................................................................

120 sampling par second = 0.00833333 sec/sampling

-100.000000 .. 0.000000 .. 100.000000 micro volt p-p. 0.1953125 micro volt p-p is one step AD:

CH 1 ON

CH 2 ON

CH 3 ON

CH 4 ON

---------------------------------------------



Lines            Sampling            0000          0001          0002          0003          0004          0005          0006          0007          0008          0009          0010          0011          0012          0013          0014          0015    Number


Left CH1

00000000    00000000    5.859375    -13.867188    -33.593750    5.273438     -9.960938    1.562500     1.757812     -1.367188    1.171875     5.664062     -4.101562    2.539062     -2.539062    -2.929688    2.539062     11.132812

00000001    00000016    -2.539062    -2.539062    -0.976562    1.953125     -5.468750    -1.171875    -6.835938    -7.421875    -6.640625    1.757812     -4.101562    4.687500     3.906250     -1.171875    -8.593750    0.195312

00000002    00000032    -0.390625    2.148438     -5.078125    3.906250     4.882812     1.757812     -7.031250    0.390625     0.390625     0.781250     -7.617188    1.171875     -1.367188    -2.929688    -6.835938    4.882812

00000003    00000048    1.757812     1.757812     -1.171875    3.710938     -2.148438    4.101562     -0.585938    0.585938     0.781250     3.906250     -3.906250    1.953125     -0.390625    3.515625     -2.929688    -1.562500

00000004    00000064    -3.906250    0.390625     -4.296875    5.664062     -2.343750    -5.078125    -5.468750    -2.539062    -7.617188    4.101562     -1.171875    -2.734375    -2.539062    0.781250     -5.273438

...

..........................................................................................................................................................................................................................



Brain rhythm average percentage example:


..........................................................................................................................................................................................................................

120 sampling par second = 0.00833333 sec/sampling

0.000000 .. 100.000000 % relative band peak average (Total band average = 100%) in time line:

8 band = (Eye:0<1.41 Hz, Delta:1.41<3.995 Hz, Theta:3.995<7.52 Hz, Alpha:7.52<12.455 Hz, BetaL:12.455<16.215 Hz, BetaM:16.215<20.68 Hz, BetaH:20.68<28.2 Hz, Gamma:28.2<39.38 Hz)

256 point FFT and Hanning windowing

CH 1 ON

CH 2 ON

CH 3 ON

CH 4 ON

---------------------------------------------



Ev    Time    Eye           Delta         Theta         Alpha         Beta L        Beta M        Beta H        Gamma             Left CH1

AL    14783    0.000000     0.000000     0.000000     0.000000     0.000000     0.000000     0.000000     0.000000     %    Total Average of Left Channel 1



Ev    Time    Eye           Delta         Theta         Alpha         Beta L        Beta M        Beta H        Gamma

Right CH2

AL    14783    0.000000     0.000000     0.000000     0.000000     0.000000     0.000000     0.000000     0.000000     %    Total Average of Left Channel 2



Ev    Time    Eye           Delta         Theta         Alpha         Beta L        Beta M        Beta H        Gamma             Left CH3

AL    14783    100.000000    0.000000     0.000000     0.000000     0.000000     0.000000     0.000000     0.000000     %    Total Average of Left Channel 3



Ev    Time    Eye           Delta         Theta         Alpha         Beta L        Beta M        Beta H        Gamma

Right CH4

AL    14783    100.000000    0.000000     0.000000     0.000000     0.000000     0.000000     0.000000     0.000000     %    Total Average of Left Channel 4


..........................................................................................................................................................................................................................



Brain rhythm Coherence average percentage example:


....................

120 sampling par second = 0.00833333 sec/sampling

0.000000 .. 100.000000 % absolute band average in time line:

8 band = (Eye:0<1.41 Hz, Delta:1.41<3.995 Hz, Theta:3.995<7.52 Hz, Alpha:7.52<12.455 Hz, BetaL:12.455<16.215 Hz, BetaM:16.215<20.68 Hz, BetaH:20.68<28.2 Hz, Gamma:28.2<39.38 Hz)

256 point FFT and Hanning windowing

CH 1 ON

CH 2 ON

CH 3 ON

CH 4 ON

---------------------------------------------



Ev    Time    Eye           Delta         Theta         Alpha         Beta L        Beta M        Beta H        Gamma

Coherence CH1&2

AL    14783    0.411584     0.715561     0.752180     0.779458     0.771312     0.765320     0.778532     0.770139     %    Total Average of Coherence Channel 1 & 2



Ev    Time    Eye           Delta         Theta         Alpha         Beta L        Beta M        Beta H        Gamma

Coherence CH3&4

AL    14783    0.677989     0.052198     0.049452     0.043134     0.037808     0.029537     0.028531     0.028319     %    Total Average of Coherence Channel 3 & 4



Ev    Time    Eye           Delta         Theta         Alpha         Beta L        Beta M        Beta H        Gamma

Coherence CH1&3

AL    14783    0.545192     0.246643     0.230185     0.261053     0.277601     0.287697     0.287761     0.276000     %    Total Average of Coherence Channel 1 & 3



Ev    Time    Eye           Delta         Theta         Alpha         Beta L        Beta M        Beta H        Gamma

Coherence CH2&4

AL    14783    0.518789     0.234925     0.242439     0.267419     0.289658     0.314452     0.310146     0.285465     %    Total Average of Coherence Channel 2 & 4



Ev    Time    Eye           Delta         Theta         Alpha         Beta L        Beta M        Beta H        Gamma

Coherence CH1&4

AL    14783    0.542751     0.242259     0.229049     0.245837     0.295161     0.294131     0.278355     0.268509     %    Total Average of Coherence Channel 1 & 4



Ev    Time    Eye           Delta         Theta         Alpha         Beta L        Beta M        Beta H        Gamma

Coherence CH2&3

AL    14783    0.527009     0.262798     0.247066     0.291461     0.277931     0.313463     0.311418     0.285924     %    Total Average of Coherence Channel 2 & 3


..........................................................................................................................................................................................................................




22 B.4: Export Data format.

Sep up Export Data format.



22 B.5: Export Data Channel.

Sep up Export Data Channel.



22 B.6: Save data...

Save Export Data.

make extension .txt makes easy to open file by other application such as Excel.


4 Hours and 4 CH Rawdata export is about 100 MB file.




22 A: Select Tools / Brain Data Viewer and Export
