How to read brain wave.

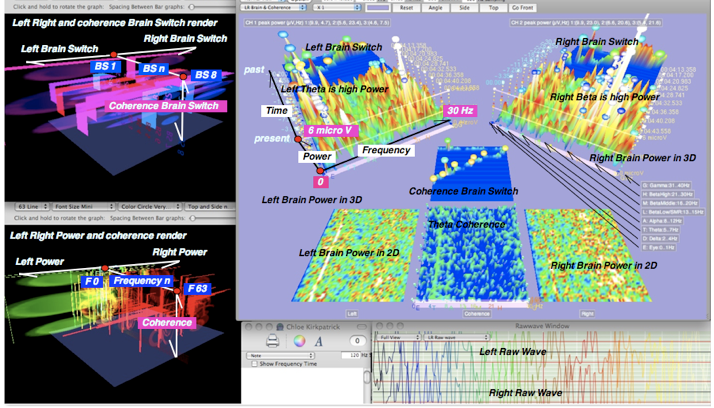

WaterFallBS window :

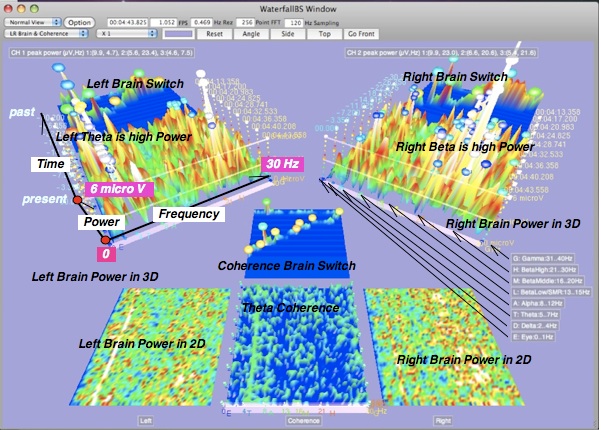

shows left/light power & coherence and left/right brain switch & coherence brain switch. Shows about 20 second in one screen.

Color is depend on power in 2D and 3D graph ( Blue is low 0 micro V, orange is middle 3 micro V, White is high 6 micro V in this setup ).

This sample shows continuously left Theta high power and continuously right beta high power.

Green color in coherence is highest coherence = 100 % coherence.

This sample shows continuously Theta coherence.

Raw wave window :

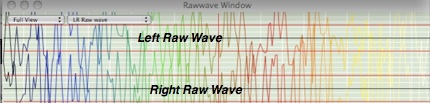

Shows left/light raw wave, color is depend on time point ( Left side black is time point 0 second, right side white is time point 1.067 second ), about 1.067 second in one screen.

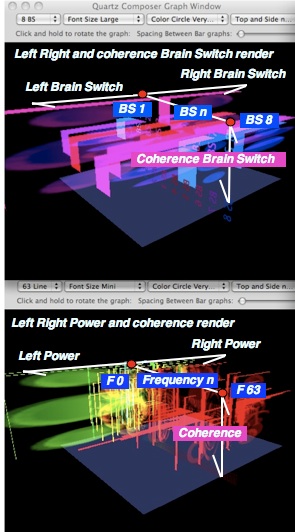

Quartz Composer 8 BS Graph window :

Render with left/right brain switch and coherence brain switch.

Shows 8 cubic block X 2 = Total 16 cubic block

Coherence surface side texture of the each cubic use crop circle images, the images are selected by power.

Quartz Composer 63 line Graph window :

Render with left/right power and coherence.

Shows 63 cubic block X 2 = Total 126 cubic block

Coherence surface side texture of the each cubic use crop circle images, the images are selected by power.
